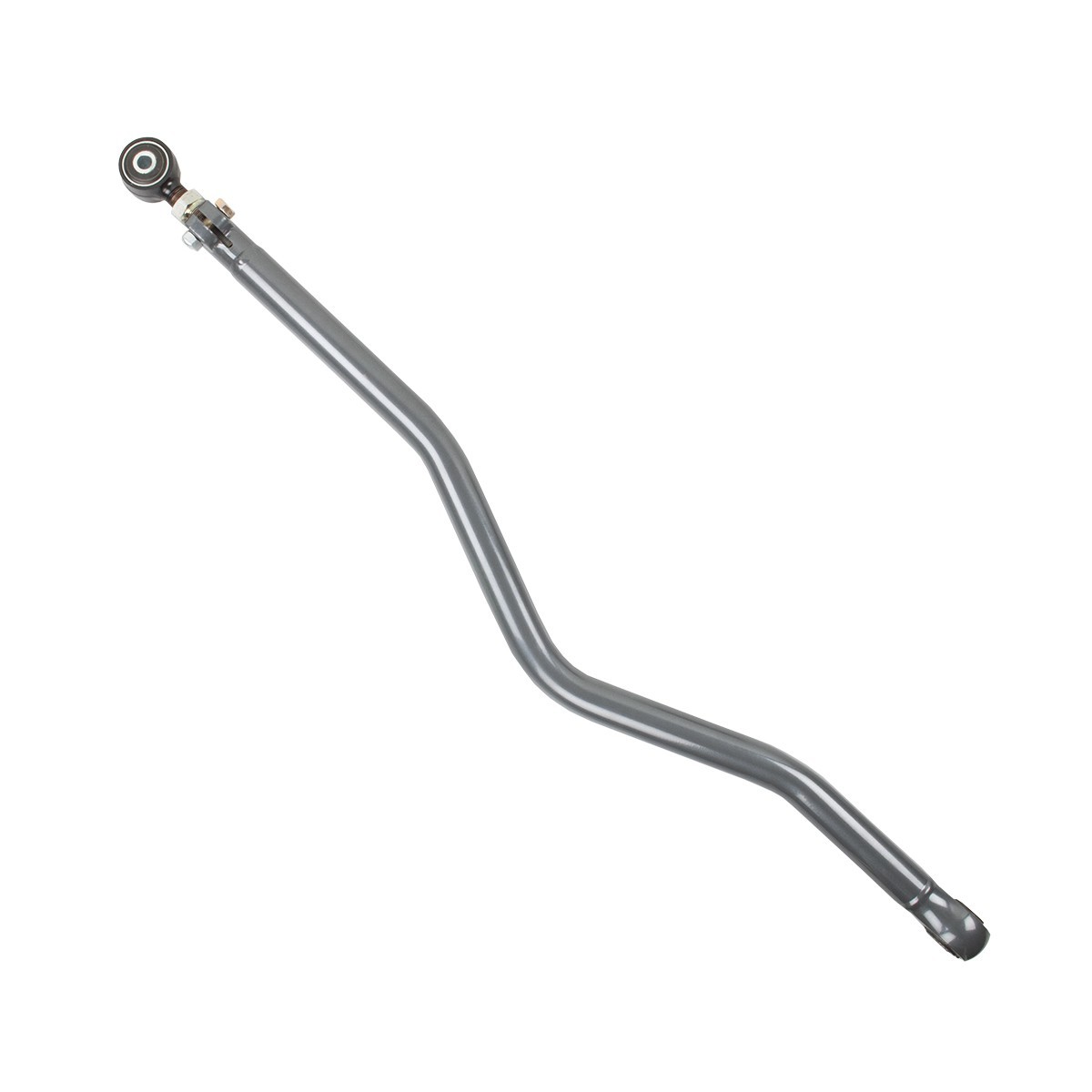

Synergy Jeep JK Rear Track Bar

Part #: 8062X

Weight: 15.58 lbs

Description

Part #	Description
8062-02	JK Rear Track Bar
8068	JK Rear Track Bar (RHD)

8062-02

Bent to clear most aftermarket differential covers
Retains factory track bar mounting bolts & hardware
Made from high quality 1.50 inch x .250 wall DOM
Allows centering of rear axle when running a suspension lift
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Will fit 0-7" lifts (Rear track bar relocation bracket recommended for lifts over 2". See 8076 or 8056)
Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removing control arm mounting bolt
Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Note: 8062 has been superseded by 8062-02

Includes:

(1) Grade 8 Pinch Bolts & Hardware
(1) Synergy Double Adjuster Sleeve
(1) Synergy Jeep JK Rear Track Bar

8068 (RHD)

Bent to clear most aftermarket differential covers
Retains factory track bar mounting bolts & hardware
Made from high quality 1-1/4" 1018 CR Solid Round Barstock
Allows centering of rear axle when running a suspension lift
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Will fit 0-7" lifts (Rear track bar relocation bracket recommended for lifts over 2". See 8076 or 8056)
Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removing control arm mounting bolt
Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Includes:

(1) Grade 8 Pinch Bolts & Hardware
(1) Synergy Double Adjuster Sleeve
(1) Synergy Jeep JK Rear Track Bar

Notes:

8062-02 - The replacement adjustable joint is 4811-01 and the replacement bushings is 4327-01
8068 - The replacement adjustable joint is 4802-31 and the replacement bushings is 4323-01
RHD = Right Hand Drive

Min/Max Lengths:

Measured in a straight line from center of bolt hole to center of bolt hole

MAX EXTENDED LENGTH: 40.500"
MIN COLLAPSED LENGTH: 39.750"

8062-02 and 8068-RHD Installation Instructions
