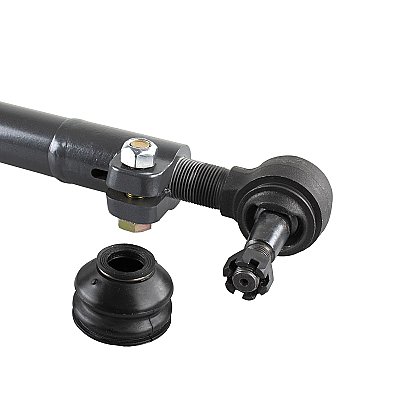

Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Drag Link

Refresh and strengthen your Ram’s steering with the Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Drag Link. Designed to be used with our Heavy Duty Tie Rod part number 8568-21, this 100% bolt-on upgrade installs with no drilling, reaming, or modification required. Designed around the proven T-style steering geometry, the Synergy drag link and tie rod combination eliminates the unwanted toe change of the old Y-style system while avoiding the bump-steer issues that “crossover” setups can introduce.

Built from USA-made 1.5" x .250 wall DOM tubing, this drag link delivers serious strength to resist bending, flexing, and fatigue—whether you’re daily driving, towing, or hitting challenging off-road terrain. To deliver the best steering possible, we use forged single plane tie rod ends - eliminating the steering dead zone that causes traditional ends to “flop,” giving you a tighter, more predictable steering feel.

For the most complete and confidence-inspiring steering upgrade, the Synergy Heavy Duty Steering Kit pairs this drag link with our matching heavy duty tie rod and your choice of a single Synergy Tuned Fox IFP stabilizer or dual stabilizers.

Warning: 2013 Dodge Ram 3500's were a split year for production. The early model trucks use the T-style steering (drag link is attached to the tie rod), Synergy Part # 8525-01. The late model trucks use cross over steering (drag link is attached to the knuckle and does not attach to the tie rod), Synergy Part # 8725-01.

Please check what style you have before ordering.

Benefits:

• Heavy Duty Drag Link is precision bent to clear factory axle brackets and is compatible from stock to 4" lifted vehicles; Vehicles over 4" of lift will require a drop pitman arm for compatibility
• Synergy Heavy Duty Tie Rod Ends are larger, stronger, and more durable than stock and include grease fittings and dust boots with retaining rings for easy maintenance
• Single plane tie rod ends eliminate unwanted drag link or tie rod movement and prevent the dead spot when changing direction
• Kit is fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
• Fully sealed from the elements thanks to our Forged Pinch Bolt housings and complete welded assembly
• Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep

Features:

• Engineered and precision bent from 1.5" x .250 wall USA made DOM tubing
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy alignment
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end

• Min collapsed length: 35.375"
• Max extended length: 37.375"

Includes:

(1) Heavy Duty Ram Drag Link
(2) Pinch Bolt Grade 8 Hardware

Notes:

• Replacement Tie Rod Ends:
  • (1) Driver Side - 4133-L
  • (1) Passenger Side - 4160-L
• Synergy High Performance Grease part number 4119 is recommended for all Synergy Heavy Duty Tie Rod Ends
• Synergy Premium Copper Infused Anti-Sieze part number 4118 recommended to be used with all threaded components including double adjuster sleeves and tie rod ends
• Drag link is not compatible with stock tie rod; Designed for use with the Synergy Heat Treated Tie Rod part number 8568-21 only

Installation Instructions
