Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Steering Kit

Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Steering Kit

SKU: 8525
Part #: 8525
Weight: 40 lbs
  • MSRP: $1000.00
Purchase through our Dealer Network.
Northridge4x44 Wheel PartsQUADRATECExtreme Diesel Products
SDHQORW - Off Road WarehouseCJC OffroadFass MotorsportsDiesel Power Products

*Not all products are available from each dealer.
For a complete list, including international dealers, click here.

The Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Steering Kit is a heavy duty bolt-on replacement for the stock steering that requires no drilling or reaming! Updating it to the factory T-style steering design eliminates the toe change common to the old Y-style kits, without the bump-steer "crossover" steering tends to produce. We use low misalignment tie rod end boots on our heavy duty tie rod ends to prevent the dead zone in your steering that creates the unwanted tie rod "flop". USA made 1.5" x .250 wall and 1.75 x .188 wall DOM tubing is used to prevent bending or breaking, giving you the confidence to cruise, haul, and wheel wherever you go. For the strongest, most reliable upgrade in steering feel, the complete kit is offered with the Synergy Heavy Duty Tie Rod, Drag Link, and the choice of either a single Synergy Tuned Fox IFP Stabilizer or Dual Stabilizer shock(s).

Fitments:

Part #FitmentDescription
8525-002003 - 2013 Dodge Ram 2500 / 2013 4x4
2006 - 2008 Dodge Ram 1500 Mega Cab 4x4
Heavy Duty Steering Kit
8525-012003 - 2013 Dodge Ram 2500 / 2013 4x4
2006 - 2008 Dodge Ram 1500 Mega Cab 4x4

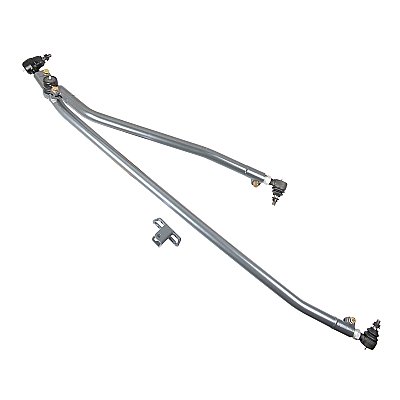

Heavy Duty Steering Kit with Stabilizer Clamp (No Steering Stabilizer)
8525-112003 - 2013 Dodge Ram 2500 / 2013 4x4
2006 - 2008 Dodge Ram 1500 Mega Cab 4x4

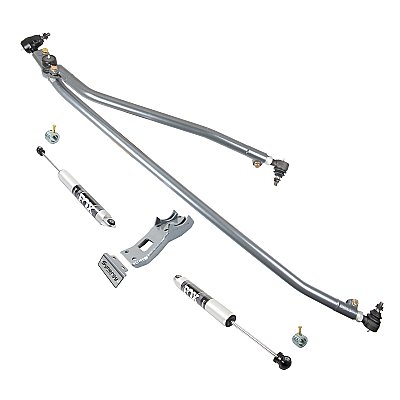

Heavy Duty Steering Kit with Single FOX IFP Steering Stabilizer
8525-212003 - 2013 Dodge Ram 2500 / 2013 4x4
2006 - 2008 Dodge Ram 1500 Mega Cab 4x4
Heavy Duty Steering Kit with Dual FOX IFP Steering Stabilizers


Warning: 2013 Dodge Ram 3500's were a split year for production. The early model trucks use the T-style steering (drag link is attached to the tie rod), Synergy Part # 8525-01. The late model trucks use cross over steering (drag link is attached to the knuckle and does not attach to the tie rod), Synergy Part # 8725-01

Please verify what style you have before ordering.

Benefits:

  • Heavy Duty Drag Link is precision bent to clear factory axle brackets and is compatible from stock to 4" lifted vehicles; Vehicles over 4" of lift will require a drop pitman arm for compatibility
  • Heat treated tie rod is over 200% stronger than OEM and formed post heat treating for superior strength
  • Engineered for maximum articulation, the heavy duty tie rod is bent to clear sway bar mounts, differential cover, and steering pitman arm
  • Synergy Heavy Duty Tie Rod Ends are larger, stronger, and more durable than stock and include grease fittings and dust boots with retaining rings for easy maintenance
  • Single plane tie rod ends eliminate unwanted drag link or tie rod movement and prevent the dead spot when changing direction
  • Kit is fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
  • Both the tie rod and drag link are fully sealed from the elements thanks to our Forged Pinch Bolt housings and complete welded assembly
  • Provides 2" of additional ground clearance from stock while adding critical strength
  • Fabricated clamp designed to retain the factory stabilizer, one of our recommended FOX Stabilizers, or other aftermarket stabilizers with 1/2" mounting bolts
  • Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep

Features:

  • Drag link is precision bent from 1.5" x .250 wall USA made DOM
  • Tie rod is engineered and bent from 1.5" x .188 wall heat treated 4130 chromoly
  • Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
  • Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
  • Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy alignment
  • 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Includes:

Notes:

pdf-icon.gif Installation Instructions


FOURWHEELER.COM - How-to: SYNERGY STEERING FOR HEAVY-DUTY RAM TRUCKS





Prop. 65 Warning for California ResidentsMore information: www.p65warnings.ca.gov
    • SKU
      8525-00
    • Weight
      40 lbs
  • Manufacturer
    Synergy Manufacturing
  • Steering Kit Options
    No Clamp & No Stabilizer, With Clamp & No Stabilizer, With Clamp & Stabilizer, Dual Bracket with Stabilizers & Clamps
