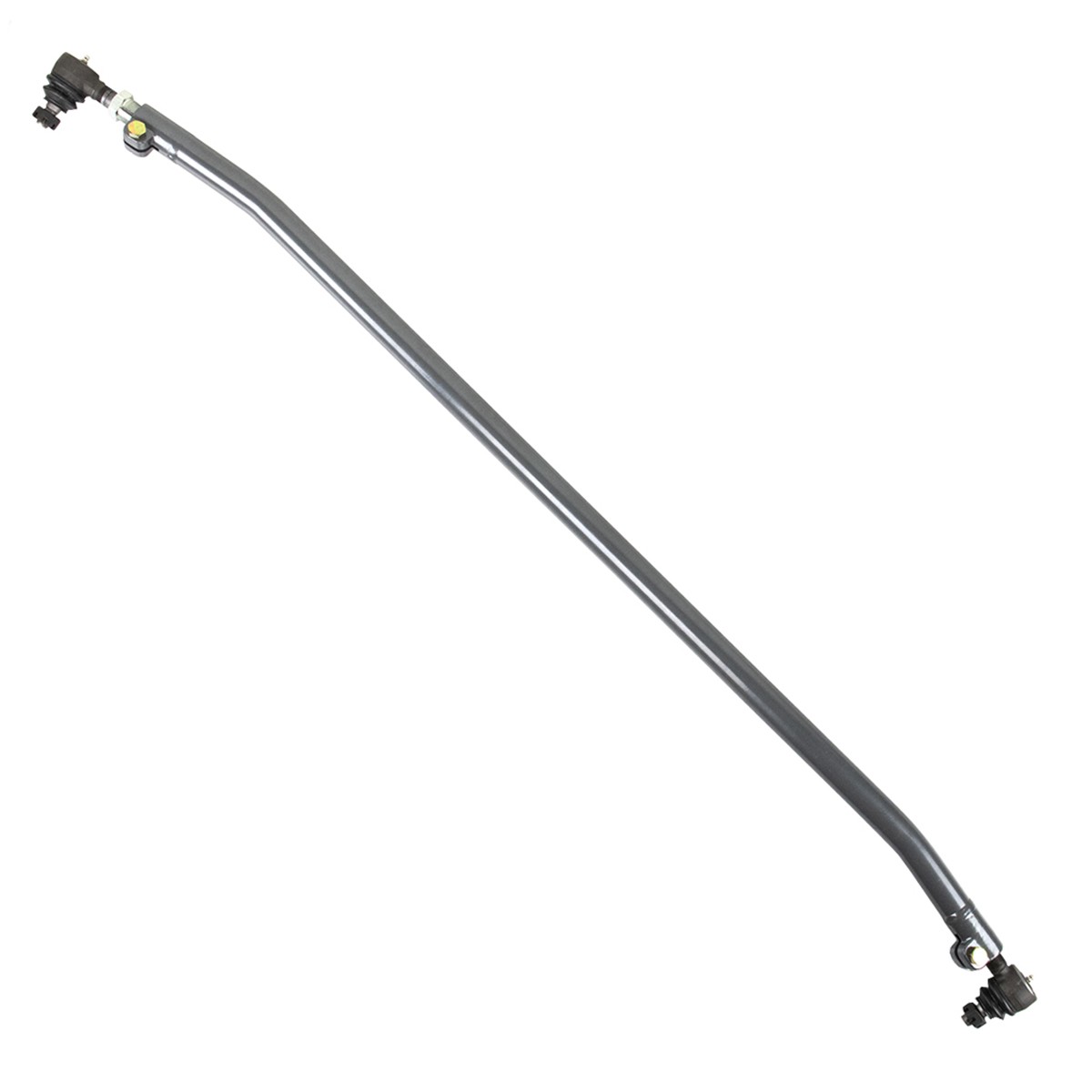

Synergy Jeep JK / JKU 4130 Heat Treated Chromoly Tie Rod

Part #: 8002-15

Weight: 16 lbs

The Synergy Jeep JK / JKU 4130 Heat Treated Chromoly Tie Rod is a direct bolt in to the JK / JKU platform for an immediate upgrade in steering strength and feel. Manufactured from heat treated 1.5" chromoly steel and made right here in the USA and capped with our heavy duty metal on metal tie rod ends, this is the last tie rod you will ever need! We integrated our single plane tie rod end on one side to prevent unwanted movement. The Synergy Double Adjuster Sleeve and Pinch Bolt Assembly makes adjustment easy without having to remove it from your Jeep. Pair this tie rod with our heavy duty drag link and track bar for a bulletproofed steering system to tackle any terrain.

Fitment:

Part #	Fitment
8002-15	2007 - 2018 Jeep JK / JKU

Benefits:

Heavy duty, heat treated 1.50" x 0.188 wall chromoly offers 200% more strength over stock and prevents unwanted vehicle wandering and unnecessary axle movement
Synergy metal on metal tie rod ends are engineering with grease grooves inthe heat treated ball bearings for maximum lubrication and wear resistance
Single plane tie rod end eliminates the "tie rod flop" commonly associated with hydro-assist set ups
Fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
No jam nuts that are impossible to keep tight
Precision bent to clear sway bar mounts and most aftermarket diff covers
Our fully greaseable Metal on Metal Tie Rod Ends provide exceptional strength, eliminate unwanted tie rod flop, and easily support hydro-assist applications

Features:

Engineered and precision bent from 1.50" x 0.188 wall 4130 heat treated chromoly
Fully greaseable, wear resistant Synergy Metal on Metal Tie Rod Ends
Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy adjustment, while installed in the vehicle
Two stage abrasion-resistant powder coat finish for maximum durability and corrosion resistance
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Min/Max Lengths:
Measured in a straight line from zerk fitting to zerk fitting

Maximum: 60.4375"
Minimum: 58.188"

Includes:

(1) Heavy duty, heat treated tie rod

(2) Synergy Heavy DutyTie Rod Ends
(1) Synergy Double Adjuster Sleeves
(2) Pinch Bolt Assemblies
(1) Pinch Bolt Hardware

Notes:

Recommended Fox Steering Stabilizers:
Requires the 8807-03 - steering stabilizer relocation kit to mount your steering stabilizer
Supersedes Part Number: 8002, Synergy 1-3/8" diameter JK HD Tie Rod
Requires 16" or larger wheel diameter
Requires the use of a maximum 4.75" backspace wheel or the use of a wheel spacer on factory wheel; 4.5" back spacing is recommended
Replacement tie rod ends: 4131-L and 4139-L
For use with a stabilizer, this kit requires the use of stabilizer clamp part number 4050-50 or 8007-03 stabilizer relocation kit
Compatible with Reid Racing High Steer Knuckles (JK001)
