Synergy 2005+ Ford Super Duty F-250 / F-350 Heavy Duty Steering Kit

Upgrade your Ford Super Duty’s steering performance with confidence with the Synergy 2005+ Ford Super Duty F-250 / F-350 Heavy Duty Steering Kit. Engineered to deliver immediate improvements in steering feel, responsiveness, and long-term durability in a true bolt-in format without requiring any modifications. Even better, it works seamlessly with OEM wheels and tires! No need to change a thing to enjoy the benefits of increased strength and stability.

At the heart of the system is our high-strength tie rod, precision CNC-formed from 1.75” heat-treated 4130 chromoly for exceptional toughness in demanding conditions. The drag link is built from USA-made 1.5” 1026 DOM steel tubing that allows you to retain compatibility with the factory steering stabilizer mount - giving you the flexibility to run stock or upgraded stabilizers as you see fit.

For those looking to take steering performance even further, this kit is fully compatible with our line of upgraded stabilizer kits. Choose from single or dual configurations, with options for both stock and low-mounted tie rod stabilizers, so you can dial in the setup that works best for your truck’s specific needs—whether you’re towing, daily driving, or heading off-road.

Pro Tip: Pair this steering kit with our Heavy Duty Adjustable Track Bar for superior ride control and quality!

Fitment:

STOCK STEERING STABILIZER MOUNTING LOCATION OPTIONS:
Kit options for mounting your upgraded stabilizer on the drag link.

TIE ROD STEERING STABILIZER MOUNTING LOCATION OPTIONS:
Kit options for mounting your upgraded stabilizer(s) on the axle and tie rod.

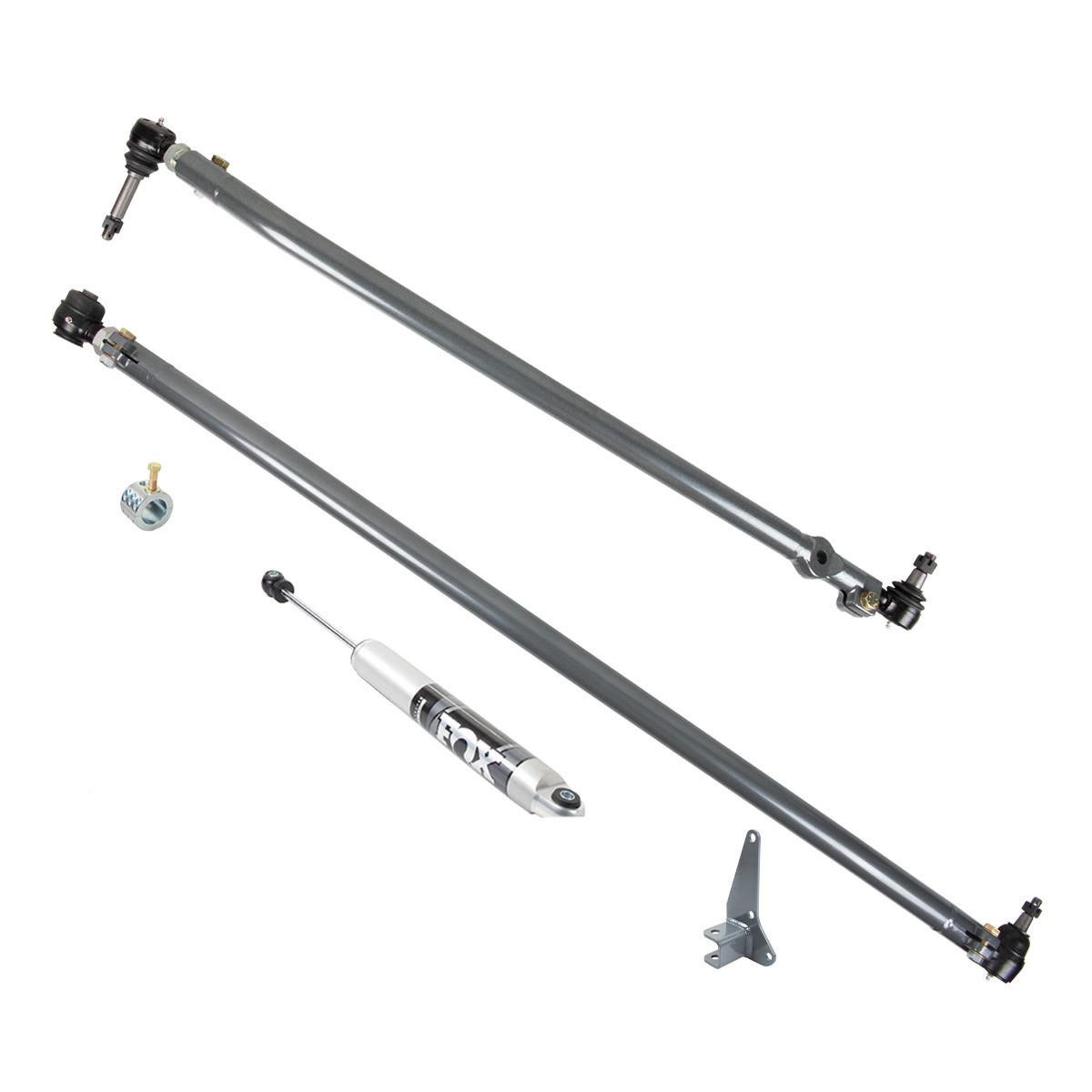

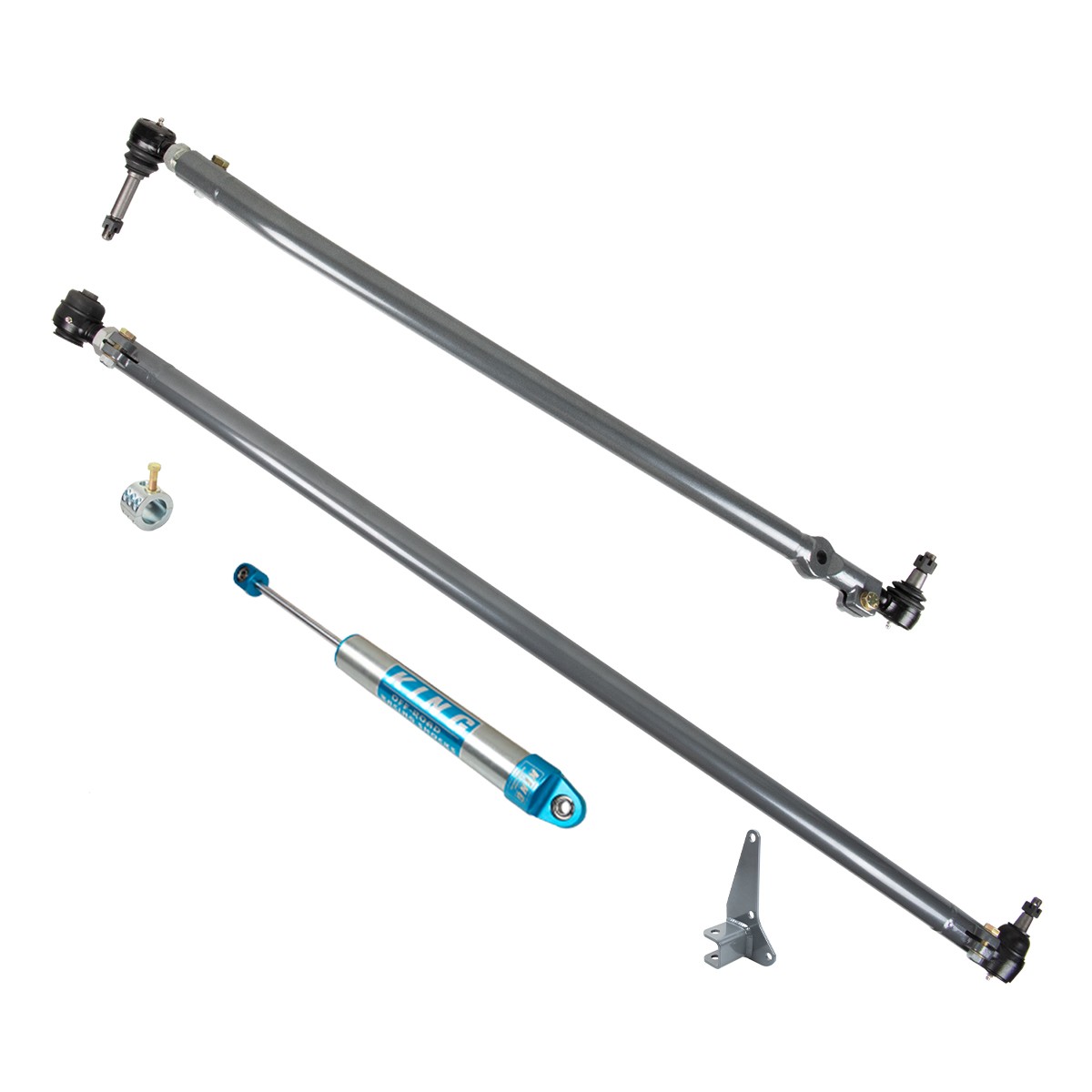

Important note: Please verify your front axle identification prior to ordering. If you have the front Dana 60 /  Advantek M256 / 10 bolt differential cover you will need part numbers 8625-05 or 8625-06 for a tie rod mounted single stabilizer.

Tie rod mounted single stabilizer kits for the newer Dana 50 / Advantek M235 / 14 bolt differential covers coming soon!

Benefits:

• Heavy Duty Drag Link is precision bent to clear factory axle brackets and is compatible from stock to 4" lifted vehicles; Vehicles over 4" of lift will require a drop pitman arm for compatibility
• Heat treated tie rod is over 40% stronger than OEM and formed post heat treating for superior strength
• Engineered for maximum articulation, the heavy duty tie rod is bent to clear sway bar mounts, differential cover, and steering pitman arm
• Synergy Heavy Duty Tie Rod Ends are larger, stronger, and more durable than stock and include grease fittings and dust boots with retaining rings for easy maintenance
• Single plane tie rod ends eliminate unwanted drag link or tie rod movement and prevent the dead spot when changing direction
• Kit is fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
• Both the tie rod and drag link are fully sealed from the elements thanks to our Forged Pinch Bolt housings and complete welded assembly
• Fabricated clamp designed to retain the factory stabilizer, one of our recommended FOX or KING Stabilizers, or other aftermarket stabilizers with 1/2" mounting bolts
• Synergy single and dual stabilizer brackets can be ran while retaining a stabilizer in the factory position on the drag link
• Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep
• Compatible with stock wheels and tires and stock steering stabilizer

Features:

• Drag link is precision bent from 1.5" x .250 wall 1026 USA made DOM
• Tie rod is engineered and bent from 1.75" x .188 wall heat treated 4130 chromoly
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy alignment
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end

• Drag Link:
  • Min collapsed length: 42.625"
  • Max extended length: 45"
• Tie Rod:
  • Min collapsed length: 59.75"
  •  Max extended length: 62.5"

Includes:

STOCK STEERING STABILIZER MOUNTING LOCATION

TIE ROD STEERING STABILIZER MOUNTING LOCATION

Notes:

• Drag Link Replacement Tie Rod Ends:
  • Driver Side - 4152-L
  • Passenger Side - 4153-L
• Tie Rod Replacement Tie Rod Ends:
  • Driver Side - 4151-L
  • Passenger Side - 4150-L
• Additional recommended Steering Stabilizers:
  • TS - Through Shaft 6402-XX
  • ATS - Adjustable Through Shaft 6403-XX
  • Additional steering stabilizer options: KING 2.0 Performance Stabilizers
• Select your steering stabilizer based on the intended stabilizer configuration
• Recommended to be used with Synergy Steering Stabilizer Clamps 4050-50 (drag link) or 4050-75 (tie rod)
• Fox TS or ATS Stabilizers require the use of (2) Synergy TS / ATS Clamp Adapters 4051-01
• 4.75" backspacing wheels or less required for use with TS and ATS stabilizers
• Compatible on vehicles with up to 4" of ride height with stock pitman arm & track bar bracket. Compatible on vehicles with 4"+ lift with drop pitman arm and track bar drop bracket.
• Synergy High Performance Grease part number 4119 to be used with all Tie Rod Ends
• Synergy Premium Copper Infused Anti-Seize 4118 to be used with all threaded components

Optional Stabilizer Configurations:

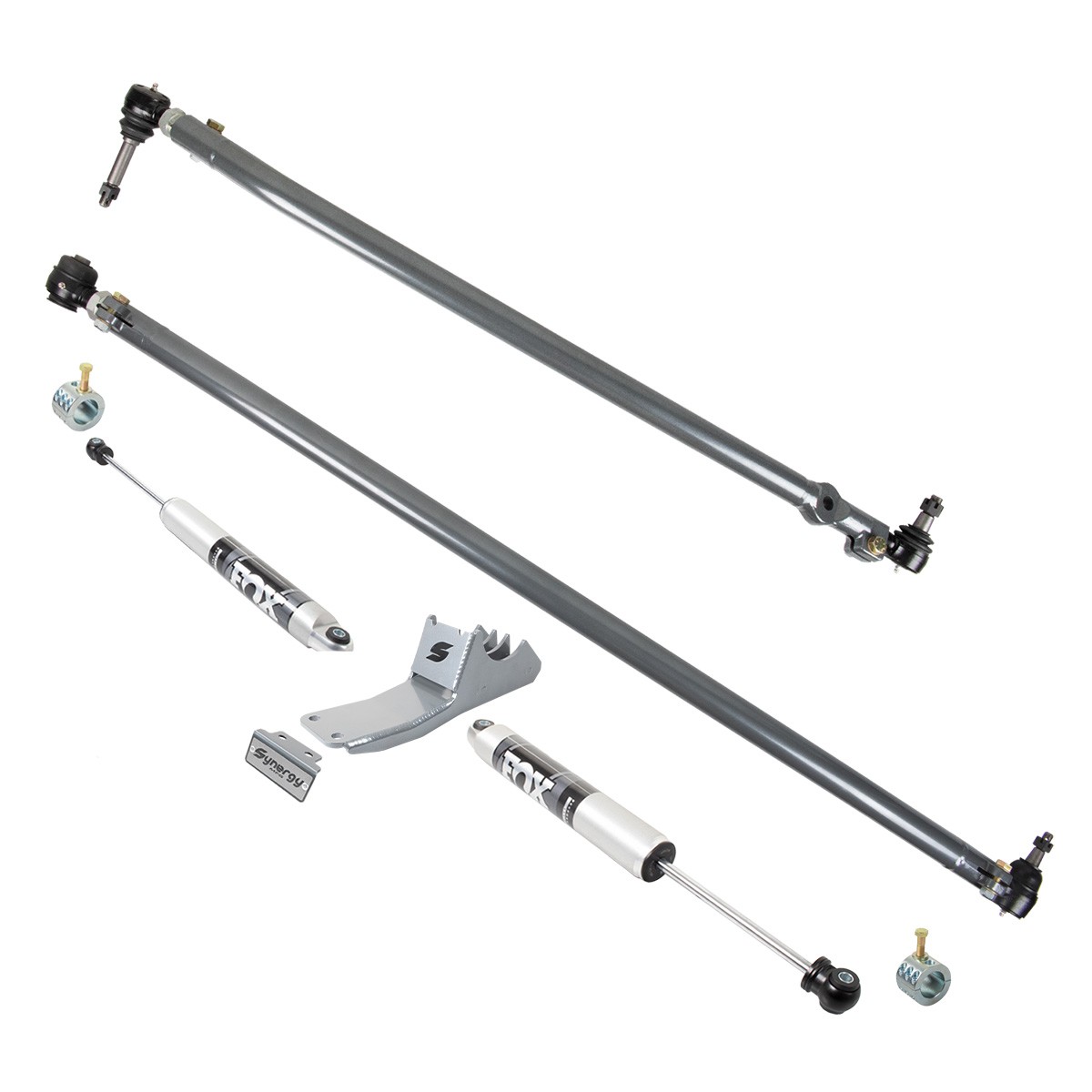

• Linear Dual Stabilizers - 8610-02 plus your choice of FOX IFP, FOX TS, FOX ATS, KING 2.0 steering stabilizers
• Single Tie Rod Mount Stabilizer - 8603-02 plus your choice of FOX IFP, FOX TS, FOX ATS, KING 2.0 steering stabilizers
• Stock Drag Link Mount Location - Select your choice of FOX IFP, FOX TS, FOX ATS, KING 2.0 steering stabilizers

 Installation Instructions - 8600-01

 Installation Instructions - 8602-11
